JVM: Structure of the JVM
Chapter 2 reading notes: types and runtime data areas, and a bit about threads. Opcodes will come soon 😄! Source: chapter 2 of JVM specification.

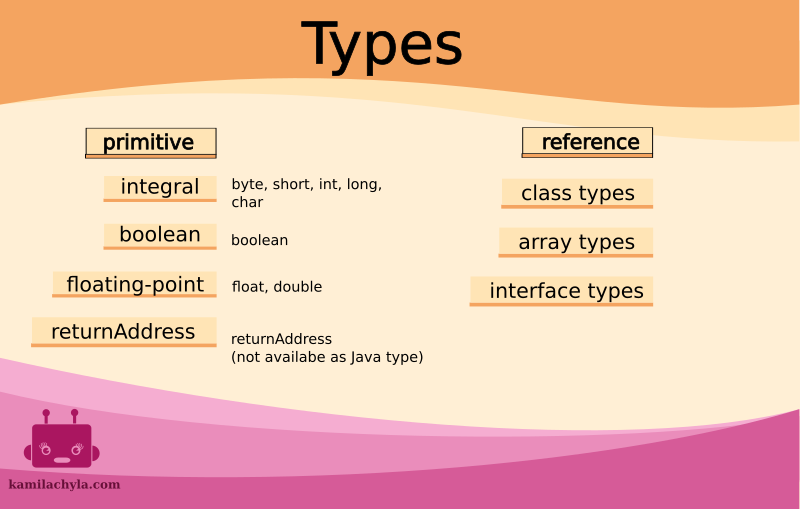

Data types
There are two kinds of types (and values stored in variables)
- primitive types (for primitive values)
- reference types (reference values)
Primitive types: have special opciodes (iadd, ladd or fadd or dadd for integer, long and float and double, respectively)
Explicit support for objets: dynamically allocated class instance or an array Reference to an object has its own type: reference (kind of a pointer); objects are always passed and operated on using this type.
Primitive types and values
- Primitive:
- Integral:
- byte, short, int, long - signed 8, 16, 32, 64 bits two’s-complement integers whose value is zero
- char - 16-bit unsigned integers; Unicode code points encoded in UTF-16
- Floating point:
- float - 32-bit IEEE 754 binary32 format
- double - 64-bit IEEE 754 binary64 format
- Boolean type:
- values: true and false (default)
- returnAddress type
- values: pointers to opcodes; used for arguments to jsr, ret, and jsr_w instructions
- can’t be changed at runtime
- not available as Java type
- Integral:
Reference types and values
- class types -> class instances
- array types -> arrrays
- interface types -> arrays or class instances that implement interface Such values can be null (default value for reference type).

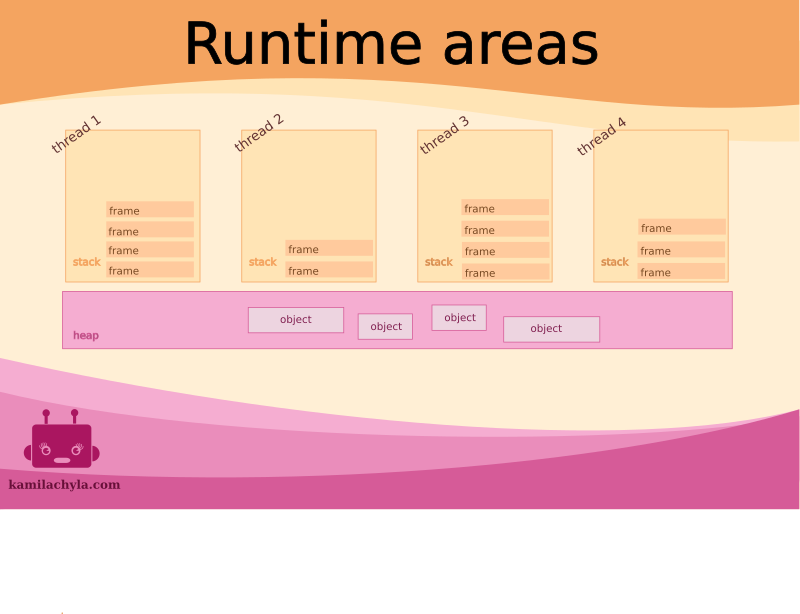

Run-Time Data Areas
- can be per-program and per-thread
PC register
- keeps the address of the VJM instruction currently being executed (if the method is not native; in such case value of pc is undefined)
Stacks
- each thread has its own stack
- holds local variables, partial results (in frames, which can be heap-allocated; memory for the stack does not need to be contiguous)
- can be fixed sized or expand/contract dynamically (size or min/max can be defined by the programmer)
- JVM throws StackOverflowError if the computation requires larger stack than is permitted
- JVM throws OutOfMemoryError if - in case of dynamic expansion - expansion is attempted but insufficient memory can be made available (or there is not enough memory to create a stack for new thread)
Heap
- shared by all threads
- stores objects reclaimed by garbage collector
- can be fixed or dynamic by size (size or min/max can be defined)
- if computation requires more heap that can be made available by GC, throws OutOfMemoryError
Method Area
- stores per-class structures
- run-time constant pool
- field and method data
- code for methods and constructors
- logically part of the heap
Run-Time Constant Pool
- per-class or per-interface representation of constant_pool table in class file.
- allocated from method area
- numeric literals known in compile time, field references resolved at run-time
- similar to symbol table in classic languages
Native Method Stacks
- needed if JVM uses conventional stacks or if it implements native methods that rely on conventional stakcs
- allocated per thread, with size that may be configured (fixed of dynamically expanded/contracted), throwing SO or OOM
Frames
- created when a method is invoked
- destroyed when invocation completes (norm. or abr.)
- allocated on per-thread stack; each has
- array of local variables (size determined at compile time)
- operand stack (as above)
- reference to runtime constant pool of the class of the current method
- only one (called current frame) is active - the one for the executing method called current method
- on return, controls goes back to previous frame which becomes current, and the frame from which control returned is discarded
Local Variables
- single local variable (lv) can hold a value of types: boolean, byte, char, short, int, float, reference, returnAddress.
- types long and double require two local variables per value (only accessed by for read by lesser index; higher index can be stored into)
- accessed by 0-indexing
- on instance method invocation, 0-th variable is always reference to this
Operand Stacks
- empty at start
- max depth determined at compile time and supplied with current method code
- depth determination: long and double count as 2, other values as 1
- there are instructions for loading constants or variables; others for taking, operating and putting back on the operand stack
- class file verification process ensures that instructions operate on proper data (i.e. with proper types)
Dynamic Linking
- reference to constant pool in frame: needed to support dynamic linking of method code
- class file contains symbolic references to methods and variales
- dynammic linking translates those to appropriate offsets in storage structures which are valid on runtime
Completion
- normal: no exception thrown (by JVM or throw); may return value
- abrupt: JVM throws exception which is not handled in the method or athrow instructin in executed and also not handled; never returns value to invoker
Representation of Objects
This is not “mandated” in any way. There’s a note that in Oracle impl a reference to an instance is a pointer to handle, which is a pair of pointers: one to table with methods of the object and Class instance pointer, and the other to heap memory with object data.
Floating Pont Arithmetic
- JVM uses a subset of operations defined in IEEE 754 Standard with diffefences specified in the spec
- rounding policy: a function used to map a real mumner to a floating point value in a given format
- round to nearest - all fp instructions except conversion to integer and remainder
- if two nearest representable values are equally near, choose value with least significant bit being zero
- round toward zero - conversion from fp to integer by d2i, d2l, f2i and f2l and fp-remainder (drem, frem)
- inexact results rounded to nearest representable value which is not greater in magnitude than infinitely precise result (in case of conversion to integer: equivalent to truncation where fractional bits are discarded)
- round to nearest - all fp instructions except conversion to integer and remainder
Special methods
Instance Initialization Methods
- defined in a class (not interface)
- has special name
<init>
- is void Constrains:
- declaration: access_flags and code array
- use: invoked only by invoke_special
Class Initialization Methods
- has name
<clinit>
- is void
- if class file version equal or greater than 51.0: method has set ACC_STATIC flag and takes no arguments
Signature Polimorfic Methods
- declared in java.lang.invoke.MethodHandle or java.lang.invoke.VarHandle
- has single formal param Object[]
- has ACC_VARARGS and ACC_NATIVE flags set
JVM treats such method specially in invokevirtual in order to invoke method handle or access variable referenced by var handle.
Exceptions
- represented by instance of class Throwable or one of subclasses
- occur synchronously (result of an action by the thread) or asynchronously (at any point in program execution)
- three reasons:
- athrow instrunction executed
- abnormal exection condition detected (synchronously) by JVM after an instrunction that
- specifies exception as possible result (instrunction has operation that violates Java semantics, like indexing oob, or there is an error in loading/linking)
- causes limit on a resource to be exceeded (memory)
- An async exception occured
- stop method of Thread or ThreadGroup
- internal error of JVM impl
Speculative execution results of code after throwing point should be hidden from user-visible state of the program. Exceptions are therefore precise: control transfer causes all actions before throw to happen before the exception.
Process of exception throwing
- each method may have zero or more exception handlers
- exception handler:
- range of offsets into VM code implementing the method for which the handler is active (try….catch in java)
- type of the exception which the handler is able to handle
- location of the handling code
- when e. is throw, searches for matching handler for e. in current method; then (if found) branches to the handling code; if not found, the method completes abruptly, the frame is dropped and matching handlers are searched in previous method up the stack (until handler is found or thread is terminated)
- search order is guaranteed to be the order as specified in class file’s exception handler table
