JVM: Compiling for the JVM

Overview

This chapter gives an overview of how the compilation goes: how the code that resides inside methods is converted to the bytecode. The word compilation means just a transformation from the source code (Java file) to a Java bytecode.

The structure of a .class file (which contains the actual bytes of the bytecode, constant pool and other data) is desribed in much detail in chapter 4 of the JVM specification.

Visualization

In order to better visualize the stack, the frames, the variables array, the operand stack (and in order to overcome the confusion between call stack, stack frames and operand stack) I needed a resource that would talk to my visual brain and would show me how things look like.

One of the “visualization” resources I found was an old article at Artima by BillVeners - with clear diagrams that somehow “talk to me”.

Well, yes, I get it - all those mental imagery is just a helper, a tool, and things don’t look as shown on some pictures. Besides, apart from pedantic following .class file structure, jvm implementors are quite free to choose whatever way to represent data in memory during runtime and to do calculations however they want. Anyway, this is how I understand that.

Let’s dive into the spec

What I have just learned?

Local Variables

  • local variables are usually loaded using no-arg opcodes like iload_1, iload_2 etc (variants denoting index of a local variable to be pushed on operand stack)
  • put back into local variable table with istore_1, istore_2 (prefix denotes type)
  • constants are loaded using either no-arg iconst_<i> (variants for <i> in range (-1, 0, 1, 2, 3, 4 or 5) or single arg iconst value

Example:

code and bytecode for java loop

Bits manipulation

~x == -1^x so in order to calculate negation of bits, a ixor operation is called

Example:

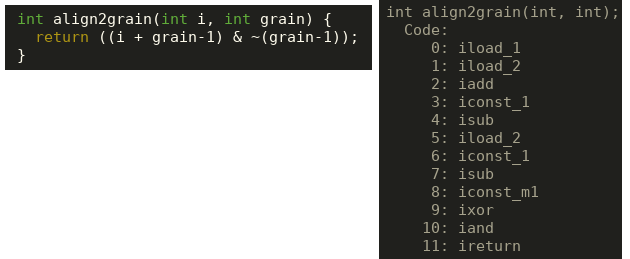

code and bytecode for bit manipulation

Constant Pool

Numeric constants, objects, methods and fields are accessed using constant pool; loading values from constant pool is done using

  • ldc, ldc_w - types other than long or double; wide variant (_w) used when constant pool is very large
  • ldc2_w - for loading long or double from constant pool

In the below example the pool looks like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Constant pool:
   #1 = Methodref          #2.#3          // java/lang/Object."<init>":()V
   #2 = Class              #4             // java/lang/Object
   #3 = NameAndType        #5:#6          // "<init>":()V
   #4 = Utf8               java/lang/Object
   #5 = Utf8               <init>
   #6 = Utf8               ()V
   #7 = Integer            1000000
   #8 = Long               -1l
  #10 = Double             2.2d
  #12 = Class              #13            // Compilation
  #13 = Utf8               Compilation
  #14 = Utf8               Code
  #15 = Utf8               LineNumberTable
  #16 = Utf8               simpleLoop
  #17 = Utf8               StackMapTable
  #18 = Utf8               align2grain
  #19 = Utf8               (II)I
  #20 = Utf8               useManyNumeric
  #21 = Utf8               chooseNear
  #22 = Utf8               (I)I
  #23 = Utf8               SourceFile
  #24 = Utf8               Compilation.java

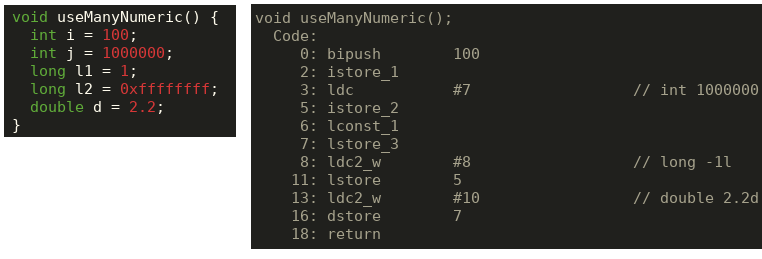

Example: code and bytecode for constant pool access

While loop

Simple while loop with int control variable compiles diferently on my machine than shown in the spec. Interesting.

Here’s my javap result and the spec suggestion:

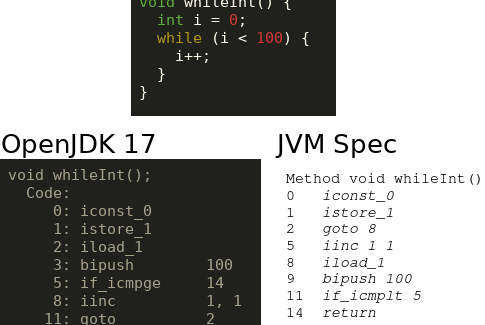

code and bytecode for while loop

The point made in the spec was that moving the comparison at the end of the compiled code with initial goto 8 that “jumps over” the code inside the loop is very wise: in the usual case when the loop executes more than once, at each iteration of the loop it is the conditional jump that causes control transfer to loop body.

In my version of bytecode (on the picture above: with black background) the loop body needs additiona goto statement that transfers control to the loop body.

I need to ask someone wiser. My guess is that this kind of “inefficiency” does not matter since it will be effectively “jit-ed” (i.e. during runtime just-in-time compilation would generate optimal machine code anyway).

Receiving arguments

The only difference between static and non-static method is that:

  • in a static method all passed argments appear from index 0
  • in non-statc method 0-th element of local variables table is occupied by a reference to this, so actual method arguments’ indices start from 1.

Example:

code and bytecode for static and non-static code

Invoking methods

  • methods are dispatched based on runtime type of the object using invokevirtual instruction
  • this instruction calls virtual method and passes all required arguments which need to be prepared on the operand stack
  • when a stack frame is created for the virtual method, this reference will be 0-th value in local variables table and other parameters will be passed as 1-st, 2-nd etc. argument

Example: Method addThree(int a, int b, int c) is using nonstaticAdd(int a, int b) from the example above:

1
2
3
4
5
6
7
  int nonstaticAdd (int a, int b) {
    return a + b;
  }

  int addThree(int a, int b, int c) {
    return nonstaticAdd(a, nonstaticAdd(b, c));
  }

It is compiled in following way:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
int addThree(int a, int b, int c);
    Code:
       0: aload_0
       1: iload_1
       2: aload_0
       3: iload_2
       4: iload_3
       5: invokevirtual #12                 // Method nonstaticAdd:(II)I
       8: invokevirtual #12                 // Method nonstaticAdd:(II)I
      11: ireturn
  • 0: this reference is pushed
  • 1: 1-st variable (a) is pushed on operand stack (those two values are needed for outer nonstaticAdd call; third value is also needed - so it will be calculated first and pushed on stack)
  • 2: this refrence is pushed again
  • 3: 2-nd variable (b) is pushed
  • 4: 3-rd variable (c) is pushed
  • 5: this invokevirtual represents the inner call nonstatic(b, c) - it eats up values pushed in steps 2, 3 and 4 above (this, b and c) and pushes the result back on stack
  • 8: this invokevirtual represents the outer call nonstatic(a, ...) - it eats up three remaining values (this, a and result pushed in setp 5) from the stack and pushes the result back on the stack
  • 11: ireturn returns with the result of type int and the control is passed to a calling method

Instruction invokevirtual needs 3 bytes: opcode and two more bytes needed to caclulate the index into the constant pool (index = indexbyte1 << 8) | indexbyte2). The instruction does a really lot: see invokevirtual

Instruction invokestatic is used to call static method (this call does not require this reference on stack before call).

Instruction invokespecial has two usages:

  • instance initialization and
  • call to super method … and also is non-trivial; see invokespecial

Objects

Creation of objects:

  • new instruction
  • dup for duplicating reference on top of operand stack
  • one reference is eaten up by instance initialization, the other is returned to the caller

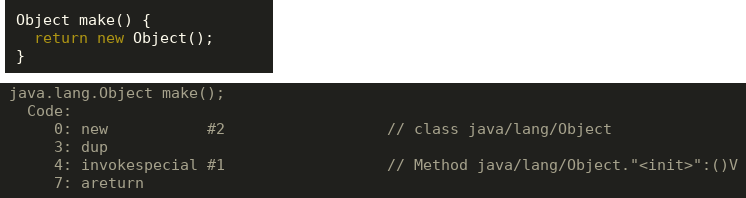

Example: code and bytecode for object creation

  • fields are accessed using getfield and putfield;
  • those instructions take symbolic reference to a value in constant pool (which is resolved at runtime)

Arrays

  • have unique set of instructions
  • newarray - creates array of numeric element type
  • anewarray - creates array of reference element type
  • multinewarray - creates multidimensional array
  • arraylength - gives the length

Example:

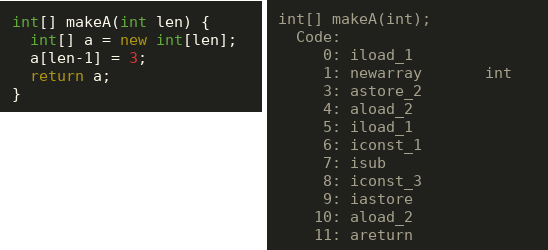

code and bytecode for array creation

Compiling switches

Instructions: tableswitch and lookupswitch

  • tableswitch - used when switch cases can be represented as a table with values being offsets to the code; if index is outside of valid table index range, default case is taken
  • lookupswitch - used when table is sparse; the keys are sorted

Example:

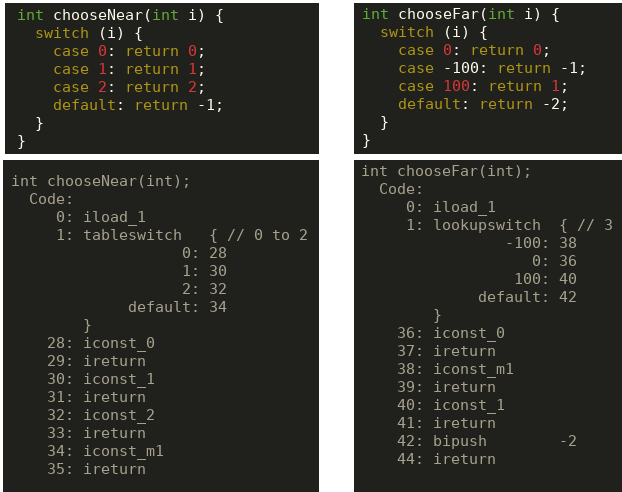

code and bytecode for switch

Exceptions

This section of chapter 4 is super funny. Starting from simple example it builds up more complex scenarios with not only trowing but alos try-catching, try-finnaly and most complex try-catch-finally case.

Simple throw

Points:

  • new is used to create exception instance
  • dup for reference duplication, needed for…
  • invokespecial used to initialize the instance
  • athrow to do the actual throw

Example:

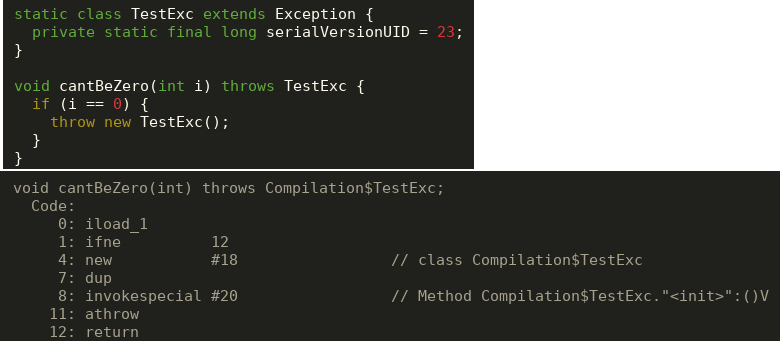

code and bytecode for throwing exception

Try-catch

When catch is present, the compiled code contains exception table which has entries for each of the sections (or: ranges) where an exception can be thrown. Each entry contains the range “guarder” by the catch clause and an offset to a catch clause code itself.

In case of a throw, when control comes back to target code in exception table, the thrown value is available on the top of the stack.

If there was no throw, there is a goto jump to return instruction.

Example:

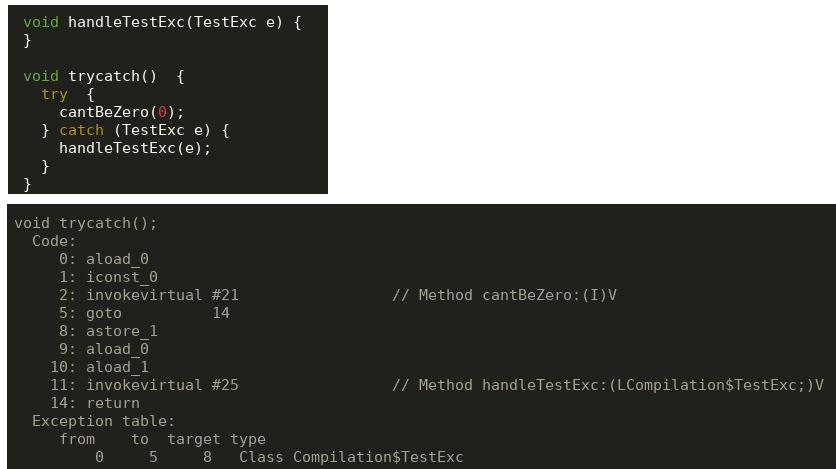

code and bytecode for try-catch

The case with two or more catch clauses (for more than one exception type) is similar - the only difference is that excpetion table grows to encompass new ranges.

Try-finally

A bit more complex variant with many possible code paths. The spec shows the usage of jsr and ret instructions (jump to subroutine and return from subroutine), however my code does not use it - jsr was deprecated in Java 7.

Have a look:

Example:

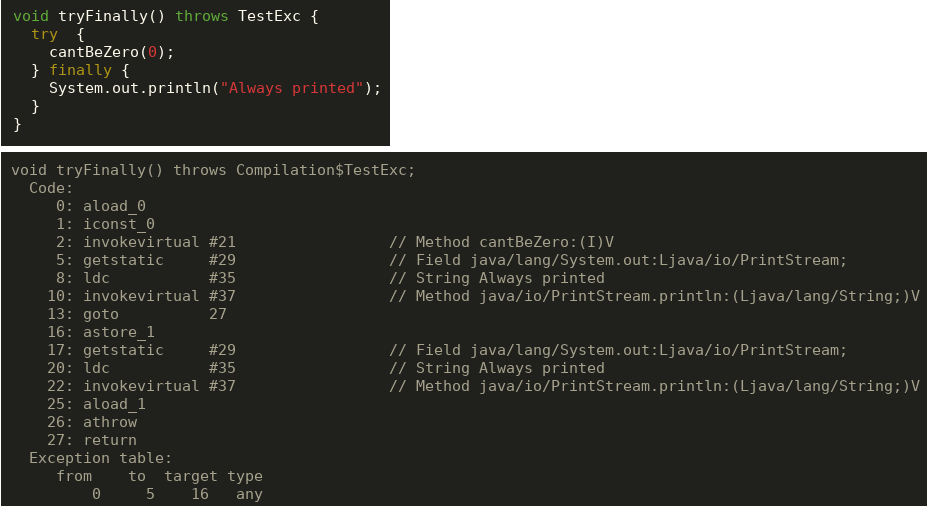

code and bytecode for try-finally
  • Here, if exception is not thrown, the code in finally (instructions: 5 - 10) is executed right after the code in try (1 - 2).
  • However, if an exception is thrown, according to exceprion table the control goes to instruction 16:
    • the exception object reference is stored in local variable 1
    • then the same code (17 - 25) as before (5 - 10) is generated again, and at the end
    • the exception object refrence is loaded on operand stack and exception is re-thrown.

Try-catch-finally

Here’s the most advanced variant of exception handling logic. Let’s see how it works.

Example:

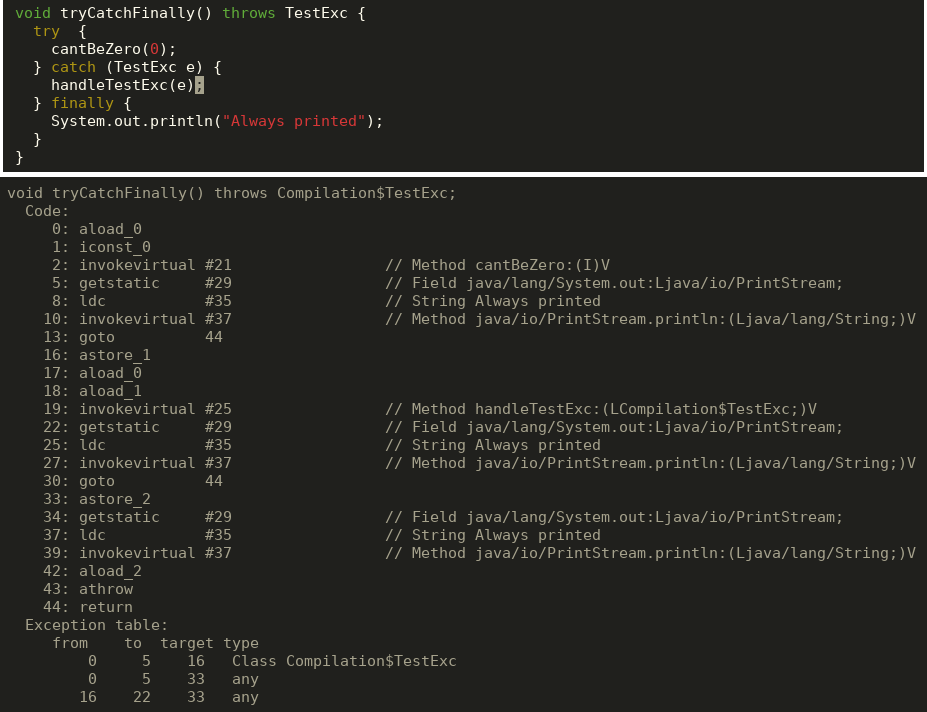

code and bytecode for try-catch_finally

Instructions representing finally block:

1
2
3
  getstatic     #29
  ldc           #35
  invokevirtual #37

are repeated tree times - in instruction ranges:

  • [5, 8, 10] - executed if cantBeZero(..) does not throw
  • [22, 25, 27] - executed if cantBeZero(..) throws TextExc, after calling a handler in instrction 19
  • [34, 37, 39] - if cantBeZero(..) throws other exception, or if handler throws any exception

Synchronization

Two bytecode instructions are used to compile synchronized statements in Java language: monitorenter and monitorexit. Synchronized methods are recognized in runtime by method invoking instrunction (by checking ACC_SYNCHRONIZED flag attached to the method).

Code

All code snippets used in this post are availabe on GitHub.
